Description
PW5 uses WiFi + Bluetooth + 2.4G wireless transmission technology, low power consumption, strong anti-interference ability. WiFi + Bluetooth connect network can greatly enhance the connect network experience. When the router is disconnected, Bluetooth can also directly connect and control equipment at close range.
After successful network configuration using [Tuya Smart] app to achieve wireless dimming, remote control, group control, scene control, timing control, music movement, biorhythm, sleep plan, wake plan, one key execution, automation, etc. functions. And it supports 2.4G remote control.

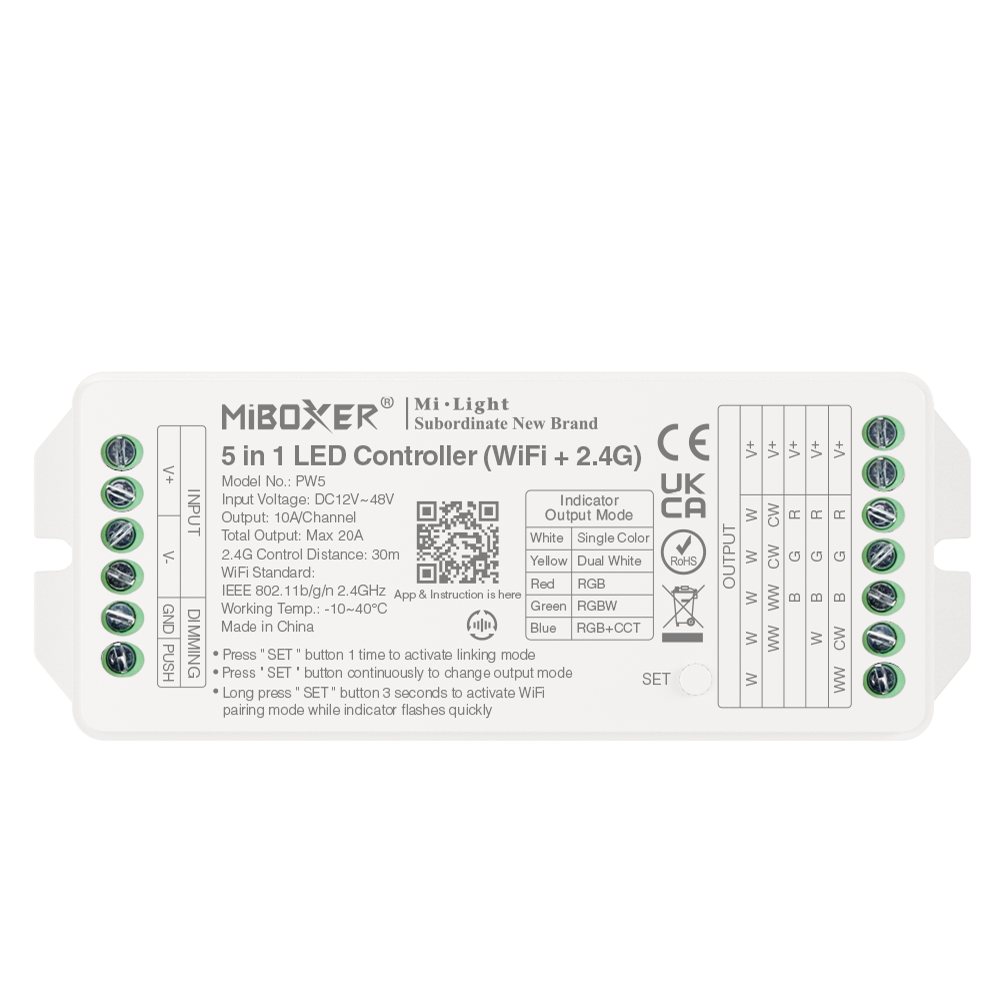

| Product Name |
5 in 1 LED Controller (WiFi+2.4G) |
|---|---|
| Model No. |
PW5 |
| Input Voltage |
DC12~48V |
| Output |
10A/Channel |
| Total Output |
Max 20A |
| Communication Protocol |
WiFi+ 2.4GHz |
| 2.4G RF Control Distance |
30m |
| IP Rate |
– |
| Working Temperature |
-10~40°C |
| WiFi Standard |
IEEE 802.11b/g/n 2.4GHz |
| Bluetooth Protocol |
Bluetooth 4.2 (low power consumption) |
